IP over 2-wireThe FCDC3 Flowire Converter enables Ethernet to run on the same two wires as power, providing simpler cabling and opens up for longer cable hauls. The Flowire Converter is also capable of powering Ethernet devices attached to it, such as IP intercom stations and CCTV cameras.
Learn more on our Flowire Wiki Page
| Mechanical | |
|---|---|

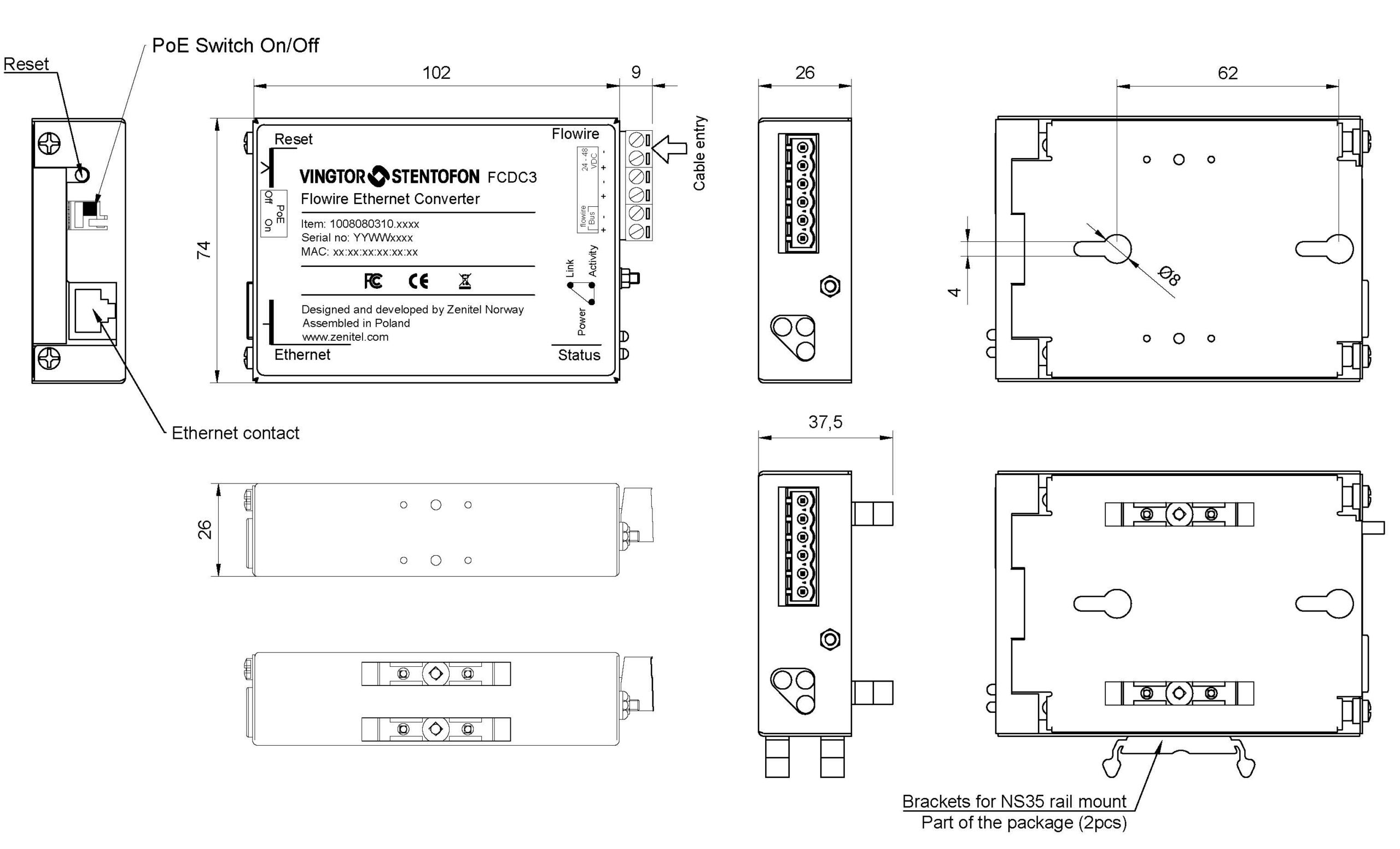

| Dimensions | 107 x 74 x 26 mm |
| Weight | 300 g |
| Mounting | Wall mount or DIN rail |
| IP rating | IP 20 |
| Environmental | |
| Operating temperature | -40°C to +70°C |
| Operating humidity | 15% to 95% (non-condensing) |
| Storage temperature | -40°C to + 70°C |
| Storage humidity | 10% to 95% (non-condensing) |
| Network | |
| Flowire | Up to 400 Mbps @ 100m *), Up to 200 Mbps @ 500m *), *) Tested under typical conditions. Available bandwidth depends on cable type, cable length and number of attached devices. Total cable length for a Flowire cluster should not exceed 600 m. |
| Electrical | |
| Nominal voltage | V NOM = 24VDC – 48VDC, V MIN = 18VDC, V MAX = 56VDC |
| Power consumption | P NOM = 2.5W, P MAX = 6W |
| Power forwarding, compatible with PoE Mode B (Spare pair) | P MAX = 15W |
| Note | Max power feed to a Flowire cluster is 3A. If the power supply can deliver more, an external fuse is recommended. |
| Electromagnetic Compatibility (EMC) | |
| Immunity | IEC/EN 60945:2002/Cor1:2008, EN 61000-6-2:2005 |
| Emissions | IEC/EN 60945:2002/Cor1:2008, EN 61000-6-3:2007+A1:2011 |
