VideoThe ITSV-5 is a powerful IP video phone featuring Android 11, an 8” touch screen, real-time HD video telephony, built-in WiFi, Bluetooth, and more. The ITSV-5 delivers advanced SIP telephony features and out-of-the-box integration with our IC-EDGE and ICX-AlphaCom IP Intercom Platforms.
| GENERAL | |
|---|---|
| Graphic Display | 8” (1280×800) capacitive (10 points) touch screen IPS LCD |
| Camera | Tiltable 2 mega-pixel CMOS camera with privacy shutter, 1080P@30fps |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB 3.0 port, Type-C, HDMI-out, HDMI-in |
| Feature keys | 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and BACK |
| Video Codec | H.263, H.264 BP/MP/HP |
| Video resolution | Up to 1080p |
| Video frame rate | Up to 30 fps |
| Operating temperature range | 0°C to +40°C |
| Storage temperature range | -10°C to +60°C |
| Relative humidity | 10% – 90% non-condensing |
| Power options | Power over Ethernet (PoE & PoE+) or power adapter. |
| Power over Ethernet | 802.3af Class 3, 802.3at Class 4 |
| Power adapter | Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A |
| Network Interface | 2 x RJ45 (Ethernet) 10/100/1000 Mbps with integrated PoE/PoE+ |
| Bluetooth | Integrated, Bluetooth 5 + EDR |
| Wi-Fi | Integrated, dual-band 2.4 & 5GHz with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display & AirPlay |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support, anti-hacking secure boot |
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDPMED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®. |
| Audio technology | Wide-band Opus, wide-band G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0 |
| Language support | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, Czech. |
| Compliance | FCC: CFR 47 Part 15 Subpart B Class B; CFR 47 Part 15 Subpart C; CFR 47 Part 15 Subpart E; UL 60950-1 (power adapter); Part68 (HAC) CE: EN55032 Class B; EN55035;EN61000-3-2; EN61000-3-3; EN62368-1; EN300328; EN301893; EN301489-1; EN301489-17; EN62311; RoHS RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268 HDMI Source and Sink, HAC |

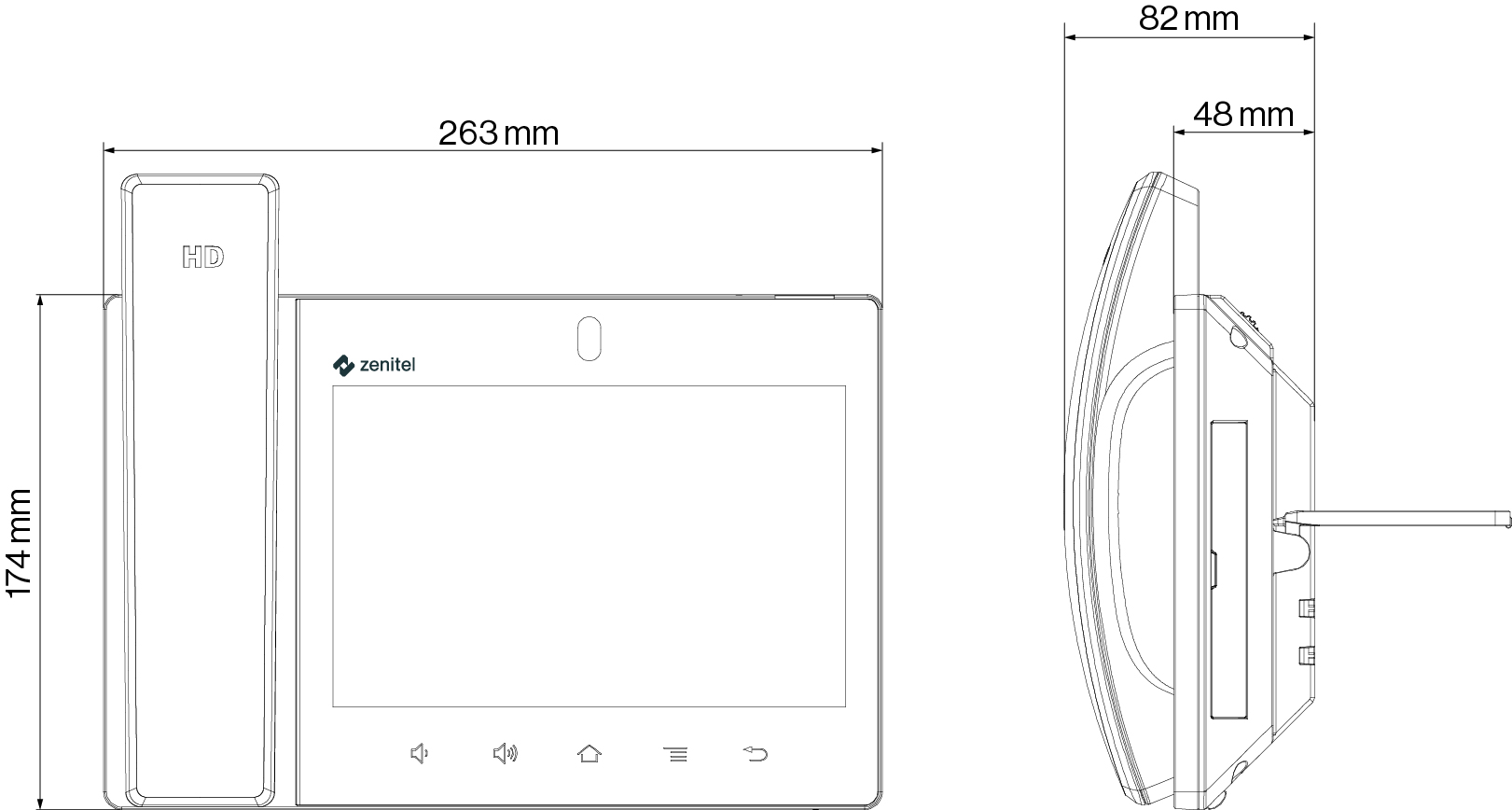

| Dimension (WxLxH) | 263 x 174 x 48 (WxLxH) mm |
| Weight | 1.08 kg |
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
