| AUDIO |
|---|
| Max SPL @ 0.5m | 106 dB |
| Codecs | G.711, G.722, G.729 |
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz |
| Audio technology | Full open duplex, switched open duplex |
| Sound level detection (scream alarm) |
| Automatic gain control |
| Automatic volume control (AVC) |
| Acoustic Echo Cancellation (AEC) |
| Noise cancellation |
| Internal speaker amplifier | 10 W class D |
| Internal speaker | 10 W |
| Microphone technology | Digital MEMS, omnidirectional microphone |
| NETWORKING AND PROTOCOLS |
|---|
| Application Protocols | SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery |
| IP Versions | IPv4 & IPv6 |
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x) |
| Supervision functions | Keep alive test, tone test, status reports |
| SIP support | RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme |
| DTMF support | RFC 2833, 2976 (SIP info) |
| Integration and API | Connected to ICX-AlphaCom through AlphaCom protocol ACDP |
| Connected to Zenitel Connect Pro though Zenitel Link |
| ONVIF |
| HARDWARE |
|---|
| Ethernet connector | 1 x RJ 45 |
| General inputs and outputs | 6 (configurable) |
| Outputs | 12mA as LED drivers |
| Change-over relay (NO+NC+COM) | SELV |
| Power options | PoE or 24 VDC (16 – 48 V) |
| PoE (power over Ethernet) | IEEE 802.3af standard |
| Power consumption | Idle 1.8W, max 12W (depending on volume) |
| Display technology | PMOLED |
| Display contrast | 20000:1 |
| Viewing angle | 160° |
| Display brightness | 120 cd/m2 |
| Button backlight | LED |
| Call indication | Icons/colors for hearing impaired |
| Door open indication | Icons/colors for hearing impaired |
| CONSTRUCTION |
|---|

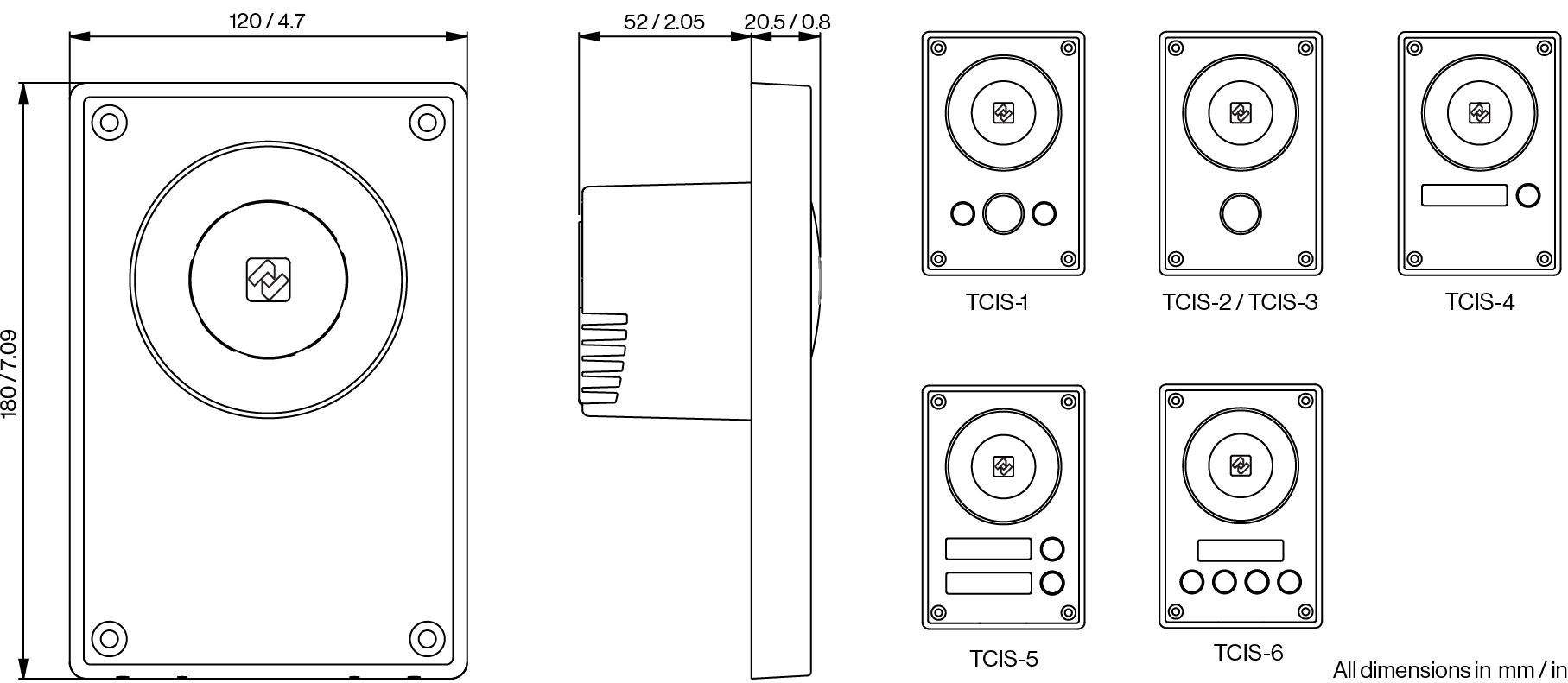

| Dimensions (HxWxD) | 180 x 120 x 73 mm / 7.1” x 4.7” x 2.9” |
| Dimensions after flush mount | 180 x 120 x 24 mm / 7.1” x 4.7” x 0.9” |
| Dimensions with on wall box | 180 x 120 x 86 mm / 7.1” x 4.7” x 3.4” |
| Weight | 0.8 kg / 1.8 lbs |
| Faceplate material | 3 mm / 0.12” PMMA, colour printed on back side |
| Base / frame material | 3 mm / 0.12” Aluminum alloy – A413.0, AlSi12Fe, painted |
| Electronics cover material | Polycarbonate (translucent) |
| Gasket material | Silicone rubber |
| Loudspeaker poke protection, small diameter objects | Stainless steel mesh, acoustically transparent |
| ENVIRONMENTAL COMPLIANCES |
|---|
| IP rating | IP66 |
| IK rating | IK08 |
| Operating temperature range | -40° to 70° C / -40° to 158 ° F |
| Storage temperature range | -40° to 70° C / -40° to 158 ° F |
| Realtive humidity | < 95% not condensing |
| Corrosion | Salty mist, tested according to EN60945 |
| Vibration | Tested according to EN60945 |
| APPROVALS |
|---|
| EMC | EN 61000-6-1, EN 61000-6-3, EN 50121-4, FCC part 15 |
| Safety | UL 62368-1, IEC 62368-1, IECEE CB |
| Sustainability | RoHS, REACH |
| OTHER SPECIFICATIONS |
|---|
| Country of manufacture | Poland |
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
