| AUDIO |
|---|
| Max SPL @ 0.5m | 106 dB |
| Codecs | G.711, G.722, G.729 |
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz |
| Audio technology | Full open duplex, switched open duplex |
| Sound level detection (scream alarm) | Included |
| Automatic gain control | Included |
| Automatic volume control (AVC) | Included |
| Acoustic Echo Cancellation (AEC) | Included |
| Noise cancellation | Included |
| Internal speaker amplifier | 10 W class D |
| Internal speaker | 10 W |
| Microphone technology | Digital MEMS, omnidirectional microphone |
| VIDEO |
|---|
| Lens | F 2.0, fixed iris |
| Image Sensor | 1/2.5″ RGB CMOS |
| Light Sensitivity | Down to 1 lux |
| Resolution | 240p / 480p / 960x720p / 1440x1080p
(MJPEG does not support 720p and 1080p resolution) |
| Frame Rate | Up to 30 FPS in 1440x1080p
(30 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS) |
| Supported Codecs | MJPEG, H.264 |
| Digital PTZ | Yes |
| Digital Zoom | Up to 4x |
| Field of View | Up to 180 degrees horizontally and vertically |
| Parallel videostreams | 6 (1x SIP H.264, 2x HTTP MJPEG, 3x RTSP sessions) |
| NETWORKING & PROTOCOLS |
|---|
| Application protocols | SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery |
| IP Versions | IPv4 & IPv6 |
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f), Power over Ethernet (IEEE 802.3at), Network Access Control (IEEE 802.1x) |
| Supervision functions | Keep alive test, tone test, status reports |
| SIP support | RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme |
| DTMF support | RFC 2833, 2976 (SIP info) |
| Integration and API | Connected to ICX-AlphaCom through AlphaCom protocol ACDP
Connected to Zenitel Connect Pro though Zenitel Link
ONVIF |
| HARDWARE |
|---|
| Ethernet connector | 1 x RJ-45 |
| General inputs and outputs | 6 (configurable) |
| Outputs | 12mA as LED drivers |
| Change-over relay (NO+NC+COM) | 2A, 60W, SELV |
| Power options | PoE, PoE+ |
| PoE (Power over Ethernet) | IEEE 802.3af standard, IEEE 802.3at |
| Power consumption | Idle 3.5W, max 12W (depending on volume) |
| Display technology | PMOLED |
| Display contrast | 20000:1 |
| Button backlight | LED |
| Call indication | Icons/colors for hearing impaired |
| CONSTRUCTION |
|---|

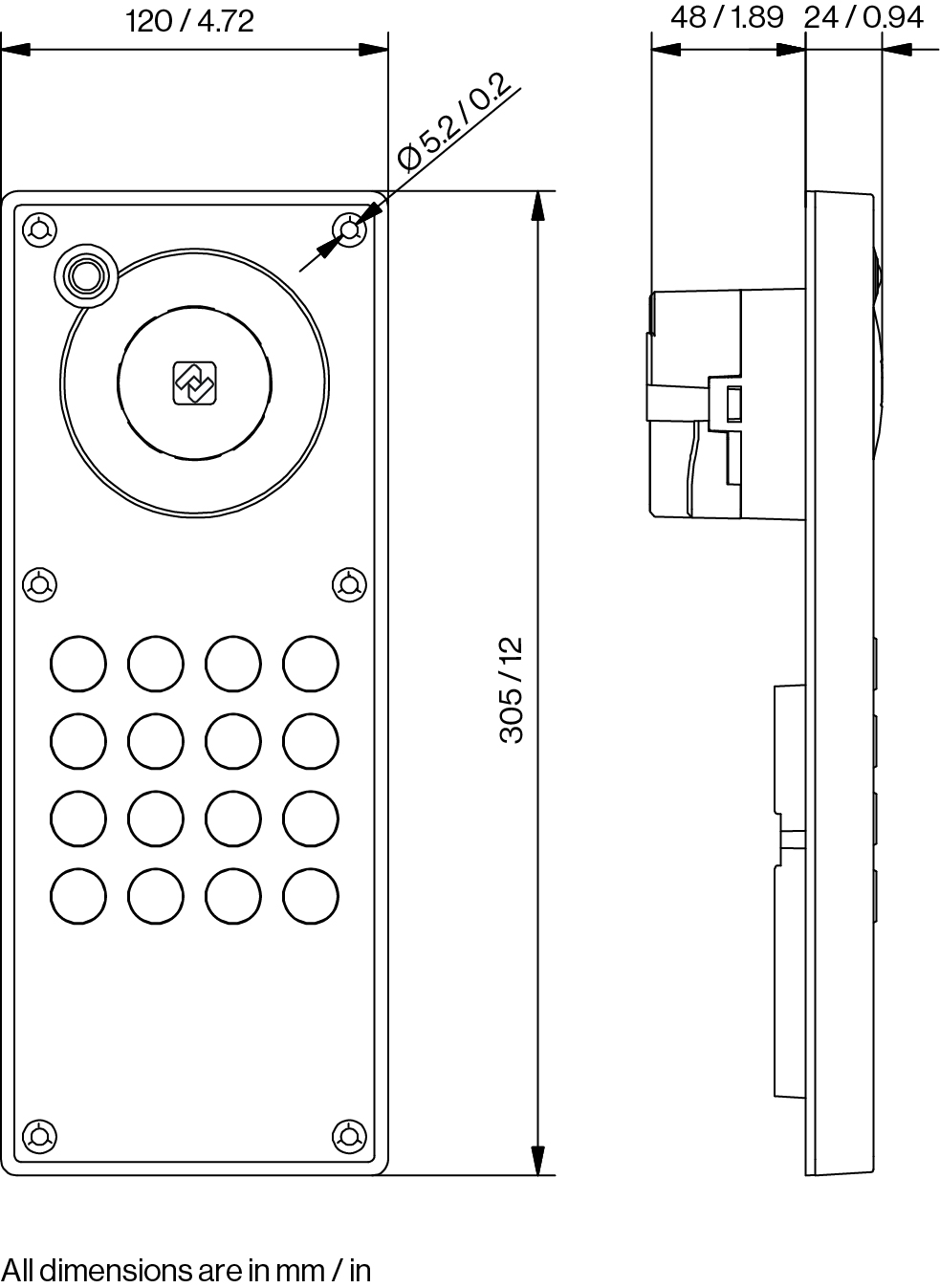

| Dimensions (HxWxD) | 305 x 120 x 73 mm / 12.01” x 4.7” x 2.9” |
| Dimensions after flush mount | 305 x 120 x 24 mm / 12.01” x 4.7” x 0.9” |
| Dimensions with on wall box | 305 x 120 x 86 mm / 12.01” x 4.7” x 3.4” |
| Weight | 1.08 kg / 2.2 lbs |
| Faceplate material | 3 mm / 0.12” PMMA, color printed on backside |
| Base / frame material | 3 mm / 0.12” Aluminum alloy – A413.0, AlSi12Fe, painted |
| Electronics cover material | Polycarbonate (semi translucent) |
| Gasket material | TPV |
| Loudspeaker poke protection, small diameter objects | Stainless steel mesh, acoustically transparent |
| ENVIRONMENTAL COMPLIANCES |
|---|
| IP rating | IP66 |
| IK rating | IK08 |
| Operating temperature range | -30° to 70° C / -22° to 158 ° F |
| Storage temperature range | -40° to 70° C / -40° to 158 ° F |
| Relative humidity | < 95% not condensing |
| CERTIFICATIONS |
|---|
| EMC | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 50121-4, FCC part 15 |
| Safety | IEC / UL 62368-1, IECEE CB |
| Sustainability | RoHS, REACH |
| OTHER SPECIFICATIONS |
|---|
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
