| AUDIO |
|---|
| SPL peak power in half and open duplex | 90 dB |
| Noise cancelling – suppression of musical noise | Yes |
| Noise cancelling – suppression of static noise | Yes |
| Codecs | G.711, G.722, G.729 |
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz |
| Audio technology | Modes: Full open duplex, switched open duplex, |
| Adaptive jitter buffer |
| Custom Ringing Tone |
| Audio Mixing – Conversation and Group Call |
| Sound Level Detection / scream alarm (in AlphaCom mode) |
| Automatic gain control (microphone) |
| Internal speaker amplifier | 10 W Class D |
| Internal speaker | 1 W |
| Microphone technology | Digital MEMS, omnidirectional microphone |
| Automatic Volume Control (AVC) | Yes |
| Acoustic Echo Cancellation (AEC) | Yes |
| VIDEO |
|---|
| Image Sensor | 1/2.5″ RGB CMOS |
| Lens | F 2.0, fixed iris |
| Light Sensitivity | Down to 1 lux |
| Resolution | 240 / 480p / 960x720p / 1440x1080p * |
| Frame Rate | Up to 30 FPS in 1440x1080p ** |
| Supported Codecs | MJPEG, H.264 *** |
| Digital PTZ | Yes |
| Digital Zoom | Up to 4x |
| Field of View | Configurable up to 180 degrees horizontally and vertically |
| Parallel Video Streams | 6 (1x SIP H.264, 2x HTTP MJPEG, 3x RTSP sessions) |
| * MJPEG does not support 720p and 1080p resolution. |
| ** 30 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS. |
| *** AlphaCom mode supports only RTSP H.264 mode, while other modes support SIP H.264. |
| HARDWARE |
|---|
| Ethernet connector | 1 x RJ45 |
| All other connectors | Tool less, spring loaded, vibration proof terminals |
| General inputs and outputs | 6 (configurable) |
| Outputs | 12mA as LED drivers |
| Change-over relay (NO+NC+COM) | SELV |
| Power options | PoE, PoE+, external power supply |
| PoE (power over Ethernet) | IEEE 802.3af standard, IEEE 802.3at |
| External power supply | 24VDC – 48VDC |
| Power consumption | Idle 3.5W, max 12W (depending on volume) |
| Audio line out / Induction loop signal | 0 dBV |
| Button backlight | LED |
| Call indication | Icons/colors for hearing impaired |
| PROCESSOR/CHIPSET |
|---|
| CPU cores | 4 x Cortex-A53 |
| CPU clock speed | 1.6 GHz |
| RAM | 512 MB LPDDR4 |
| Flash | 1 GB |
| Video encoder | MJPEG, H.264 |
| Dual image | Yes |
| CONSTRUCTION |
|---|

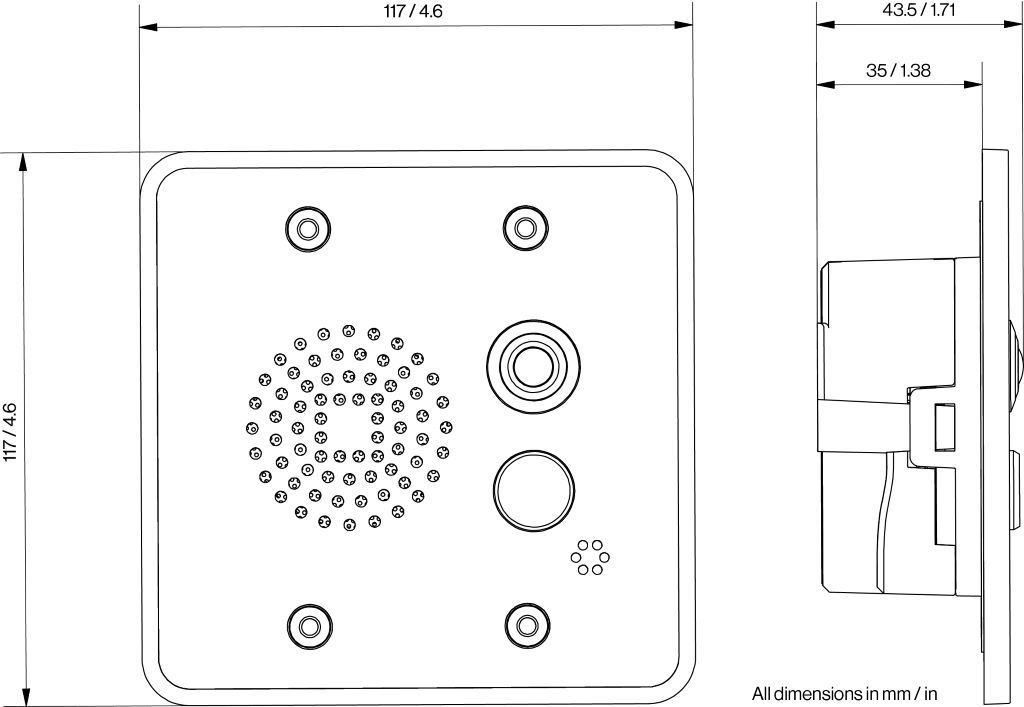

| Dimensions (HxWxD) | 117 x 117 x 43.5 mm |
| Dimensions after flush mount | 117 x 117 x 8.5 mm |
| Weight | 0.3 kg |
| Button material | 3 mm / 0.12” Polycarbonate (transparent) |
| Faceplate material | 2 mm / 0.12” PMMA, colour printed on back side |
| Base / frame material | 3 mm / 0.12” Aluminum alloy – A413.0, AlSi12Fe, painted |
| Electronics cover material | Polycarbonate (translucent) |
| Loudspeaker poke protection, large diameter objects | Thermoplastic faceplate with machined grille |
| Loudspeaker poke protection, small diameter objects | Stainless steel mesh, acoustically transparent |
| NETWORKING & PROTOCOLS |
|---|
| Protocols | IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery |
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f), Power over Ethernet (IEEE 802.3at), Network Access Control (IEEE 802.1x) |
| Management and operation | HTTP/HTTPS (Web configuration) DHCP and static IP. Remote automatic software upgrade. Centralized monitoring. |
| Advanced supervision functions | E.g. network test, tone test, status reports |
| SIP Support | RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme |
| DTMF Support | RFC 2833, 2976 (SIP info) |
| Integration and API | AlphaCom, Scripting (plugins) |
| ENVIRONMENT & COMPLIANCES |
|---|
| Ingress Protection Rating | IP44* |
| UV Resistant | YES |
| Operating Temperature Range | -25 to 55°C / -13 to 131°F |
| Storage Temperature Range | -25 to 55°C / -13 to 141 °F |
| Relative Humidity | < 95% non-condensing |
| EMC | CE and FCC part 15 |
| Certification | UL 62368-1, EN 62368-1 |
| Compliances | EN 61000-6-1, EN 61000-6-3 |
| *If mounted according to guidelines in the mounting manual |
| CERTIFICATION |
|---|
| ONVIF Conformant | Profile S |
| Other specifications |
|---|
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
